Indoor Navigation system and GPS

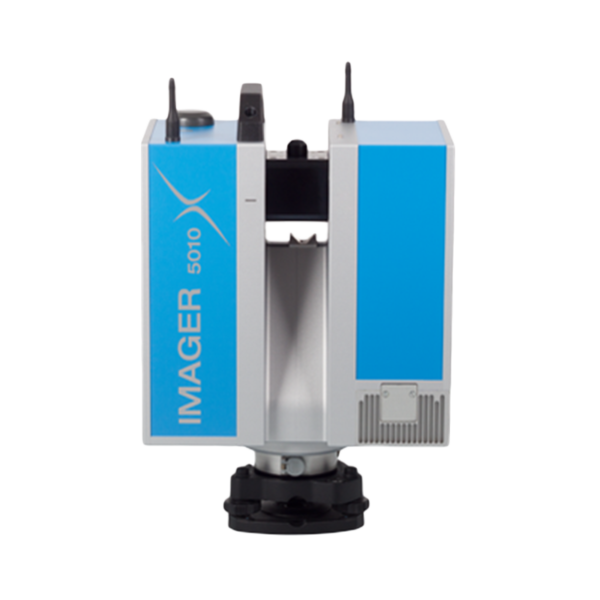

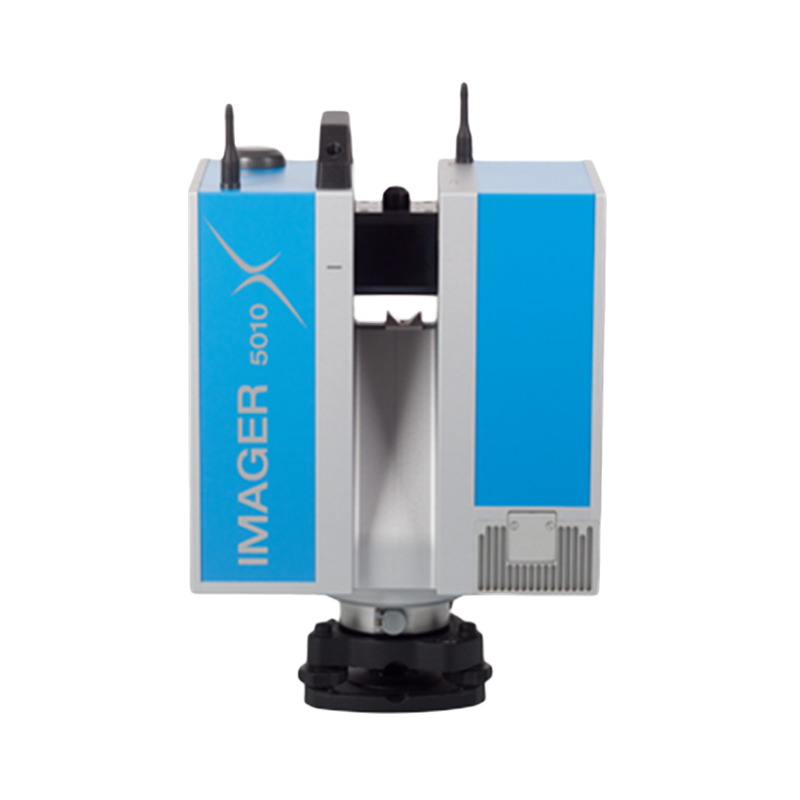

The Z+F IMAGER ® 5010X comes with a unique na-
vigation system which works outdoors and, as an
industry-fi rst, also indoors! It will estimate the current
position and orientation of the scanner to
support the registration algorithm to au-
tomatically fi nd the correct solution. The
scanner will also track your movements
while carrying the device on to the next
setup and hence provides position esti-
mation for the registration process.
Drastically improved WiFi speed and range
Working with the 802.11n-standard and dual an-
tennas, the Z+F IMAGER ® 5010X has an
increased working range and allows you
to communicate and stream scan data
quickly to the Scout tablet.
Range up to 187 meters (approx. 600 ft.)
Due to the wavelength and the approved ranging
system, the devices operate within a maximum ran-
ge of 187 m (approx. 600 ft.).
High-speed up to 1 million pixel/second
With a maximum measurement rate of 1,016,027
pixel/sec some laser scanners of Zoller + Fröhlich are
one of the fastest in the world.
320° x 360° fi eld-of-view
The large 320°x 360° fi eld-of-view yields maximum
coverage.
